Linksys WRT54GS v7 Hack to DDWRT

A lot of article around Linksys WRT54GS hack may be. But, I just share to you, how to step by step WRT54GS (Version 7) hacking. Because many benefit, if you have bravery.

My router was killed for this way. I buy another router and I hack again! Never can be stopped.
One of Benefit :

  • Can be use for capturing packet (wardriving method). If you set router to client mode, many software support this act (e.g. Comview for LAN, wireshark).
  • Up to 128 clients (AP mode).
  • Up to 250 mW.

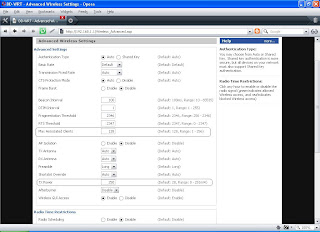

  • Unique feature (Hotspot portal, Virtual LAN, wireless client, adjust txpower, adjust date rate, adjust CPU frerequency, and more).
Warning! Read the text carefully, before you wanna hack, find your series (look sample).

Step by step:
  1. Download dd-wrt.v24_micro_wrt54gv8.bin ( My CPU Broadcom BCM5354 chip rev 2 for WRT54GS V.7).
  2. Download vxworkskillerGSv7-v3.bin. (or visit http://www.dd-wrt.com/dd-wrtv3/dd-wrt/downloads.html)


  2. Download befsx41_tFtp.exe (for rebuild your system).
  3. Unplug your router.
  4. Push the reset button while plugging your router back in. Once plugged in continue to push the reset button around 30 seconds.
  5. Open your browser and type 192.168.1.1 (default IP Router).

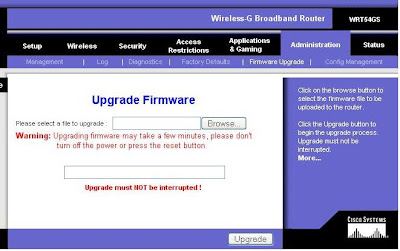

  6. Make use of the browse button & locate the vxworkskillerGSv7-v3.bin file, then click [upgrade].
  7. After it says "upgrade complete dialogue" unplug the router, plug it back in, sit back for a few 1-2 mins). Unplug it again, and then plug it back in.
  8. Open befsx41_tFtp.exe.
  9. Enter 192.168.1.1 as the server address (leave the password blank).
  10. [Browse] your way to the dd-wrt.v24_micro_generic.bin.
  11. Click [upgrade]. Please wait....
  12. Done default passsword (username:root)(password:admin).
Yeah...I have "smart router".
-------------
Special thank's:
BrainSlayer
DD-WRT (http://www.dd-wrt.com)
Linksys tutor; how to upgrading firmware, find your router series.
